FES 150S/030/035
EXQUISITE SMALL & EASY TO USE
Mini size with strong suction

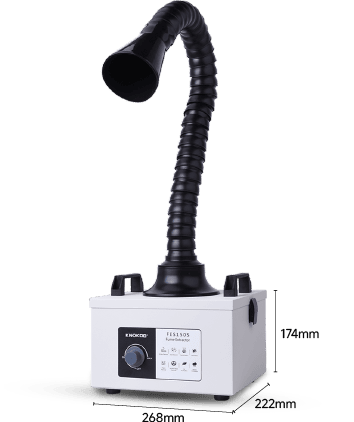

FES 150S
POWER: 100W
AIR FLOW: 200m3/h

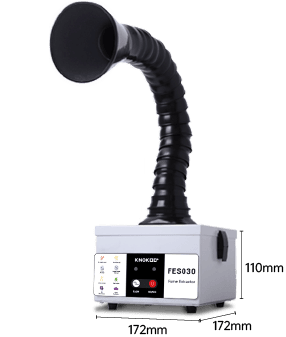

FES 030/035
POWER: 35W
AIR FLOW: 138m3/h
FES 150S
THREE LEVEL FILTERING

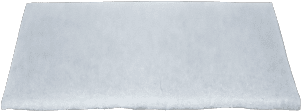

1Pre filter
Dust, debris and other large particles(PM60)

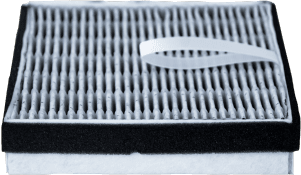

Two-in-one filter module

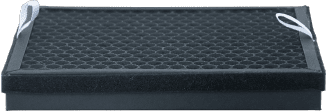

2Activated carbon(front)
Small molecules, odor molecules, etc
3Main filter(back)
Fine particles such as dust and asbestos, and Adsorption of tar and other substances(≥0.3μm)
FES 030/035
DOUBLE LEVEL FILTRATION
1Pre filter
Dust, debris and other large particles(PM60)

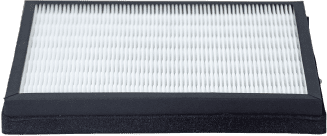

2Main filter
Fine particles such as dust and asbestos, and Adsorption of tar and other substances(≥0.3μm)
Its sound is as beautiful as the wind blowing the leaves
STANDARD ACCESSORIES
FES030
Machine*1
Primary Filter Cotton*4
Main filter*1
0.48M Bamboo Pipe*1
Round Nozzle*1
Power Cable*1
FES035
Machine*1
Primary Filter Cotton*4
Main filter*1
0.48M Bamboo Pipe*1
Round Nozzle*1
Power Cable*1
FES150S
Machine*1
Primary Filter Cotton*4
+
Two-in-one main filter *1 (front + back)
0.67m Universal Tube *1
Round Nozzle*1
Power Cable*1
PRODUCT DETAILED PARAMETERS
INPUT VOLTAGE
POWER
PORT DIAMETER
AIR FLOW
FILTER LAYERS
NOISE
PIPE LENGTH
FILTRATION EFFCIENCY
DISPLAY MODE
DIMENIONS
NET WEIGHT
FES035
BUYAC 110V/220V
35W
Φ75
138m3/h
2 Layer
30-50dB
0.48m
>0.3μm 99.97%
LED Light Switch
172*172*110mm
1.61kg
- FES030 & FES035:
- 1.Built-in air filter- The laser fumes and soldering smoke and harmful gas generated by welding,soldering,nail salon, laser, it can be filtered through the carbon Filter high efficiency filter layer to achieve 99.97% filtration and purification effect.Air circulation filter can prevent indoor fume from being discharged to the outside directly, achieving smoke absorb and purify air..
- 2.Universal smoking pipe- Smoking pipe-360-degree universal adjustment, no need for external support. Can adjust the length of the pipe freely, adjustable air volume, directional adjustment of the air duct, and free positioning.
- 3.High performance motor--High-power brush-less DC motor to provide large air volume while keep low noise.High inhalation force and high smoking efficiency.
- 4.Mini size body-The workbench at home, the company's production line, improve your work space utilization, without worrying about machine placement problems.Installation is simple and convenient, no additional pipes are needed, saving space.
- 5.High efficiency filter to absorb the fume effectively, provide you with a fresh and comfortable working environment. The primary, medium and main filter elements can be replaced separately, which prolongs the service life and reduces the use cost.
- FES150S:
- 1.THREE STAGEFILTRATION SYSTEM- KNOKOO fume extractor continuously exhaust the welding fume and lead mist, and rapid discharges it into the Pre-filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.
- 2.Energy-saving and Environmental Protection KNOKOO fume extractor creates a powerful Systemic Flow 200m³/h to exhaust and purify air, high purification rate allow you to breathe fresh air again. Frequency converter DC motor, less power consumption, smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment, environmentally friendly.
- 3.Universal Smoking pipe-360-degree universal adjustment, no need for external support. Can adjust the length of the pipe freely, adjustable air volume, directional adjustment of the air duct, and free positioning.
- 4.SIMPLE OPERATION AND INSTALLATION- Installation is simple and convenient, no additional pipes are needed, saving space.
