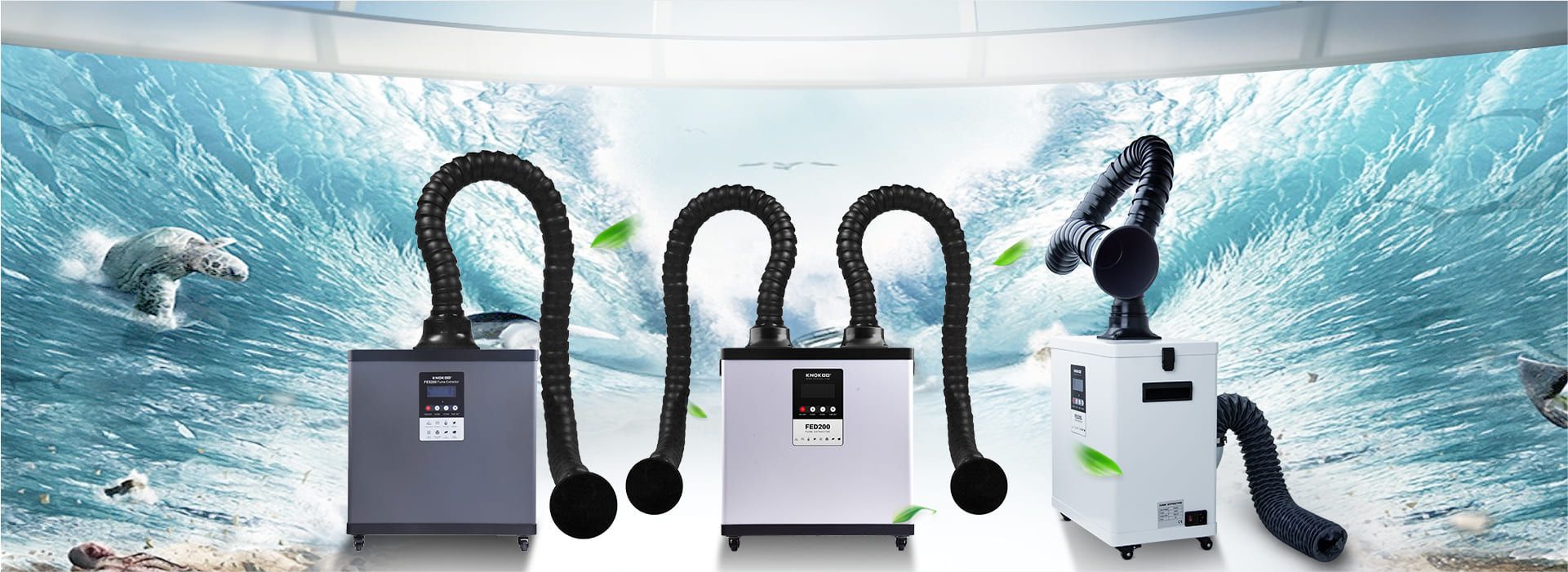

FES200 / FED200 / FES200L

FUME EXTRACTOR FOR LASER ENGRAVEING AND DTF PRINTER

strong suction and smoke filtering

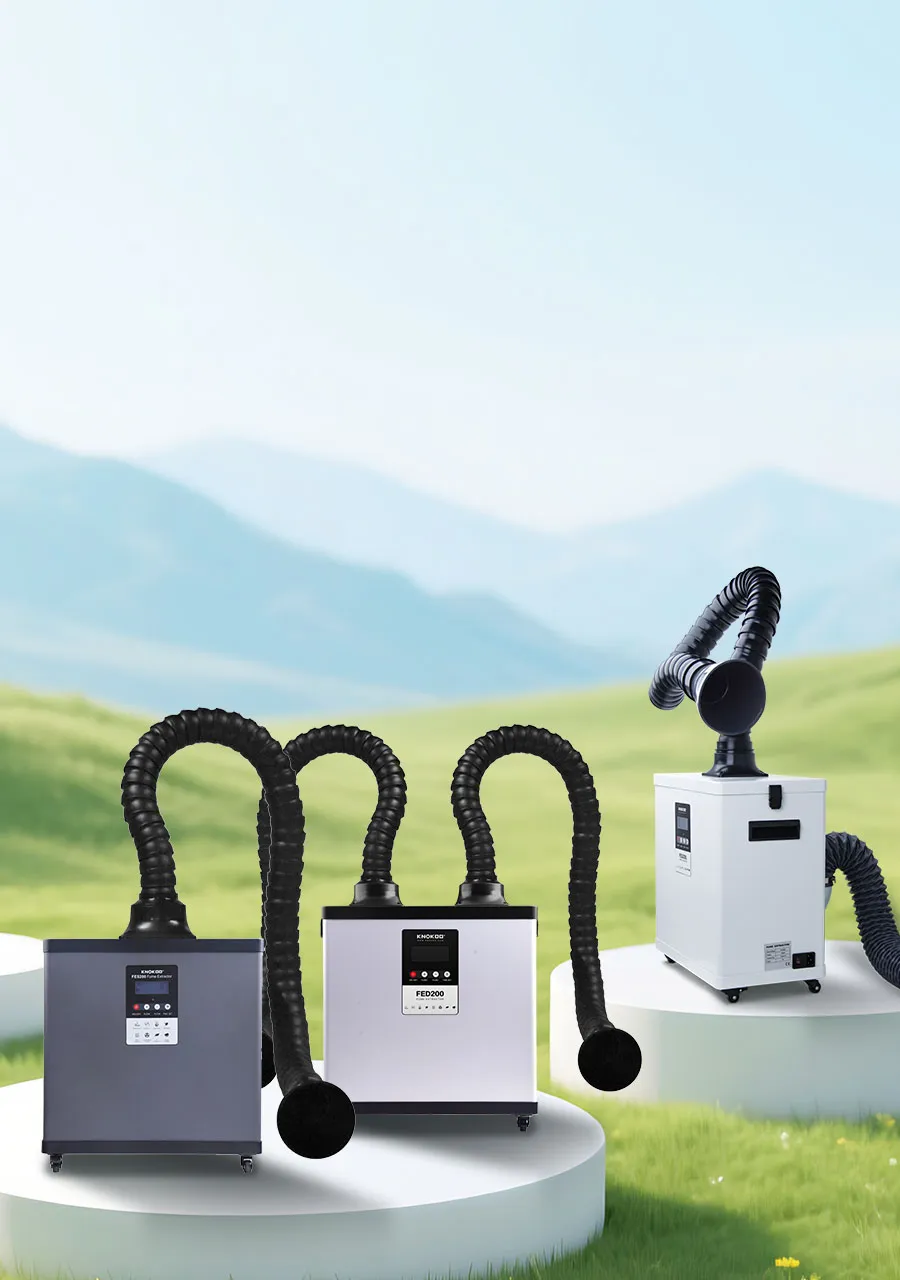

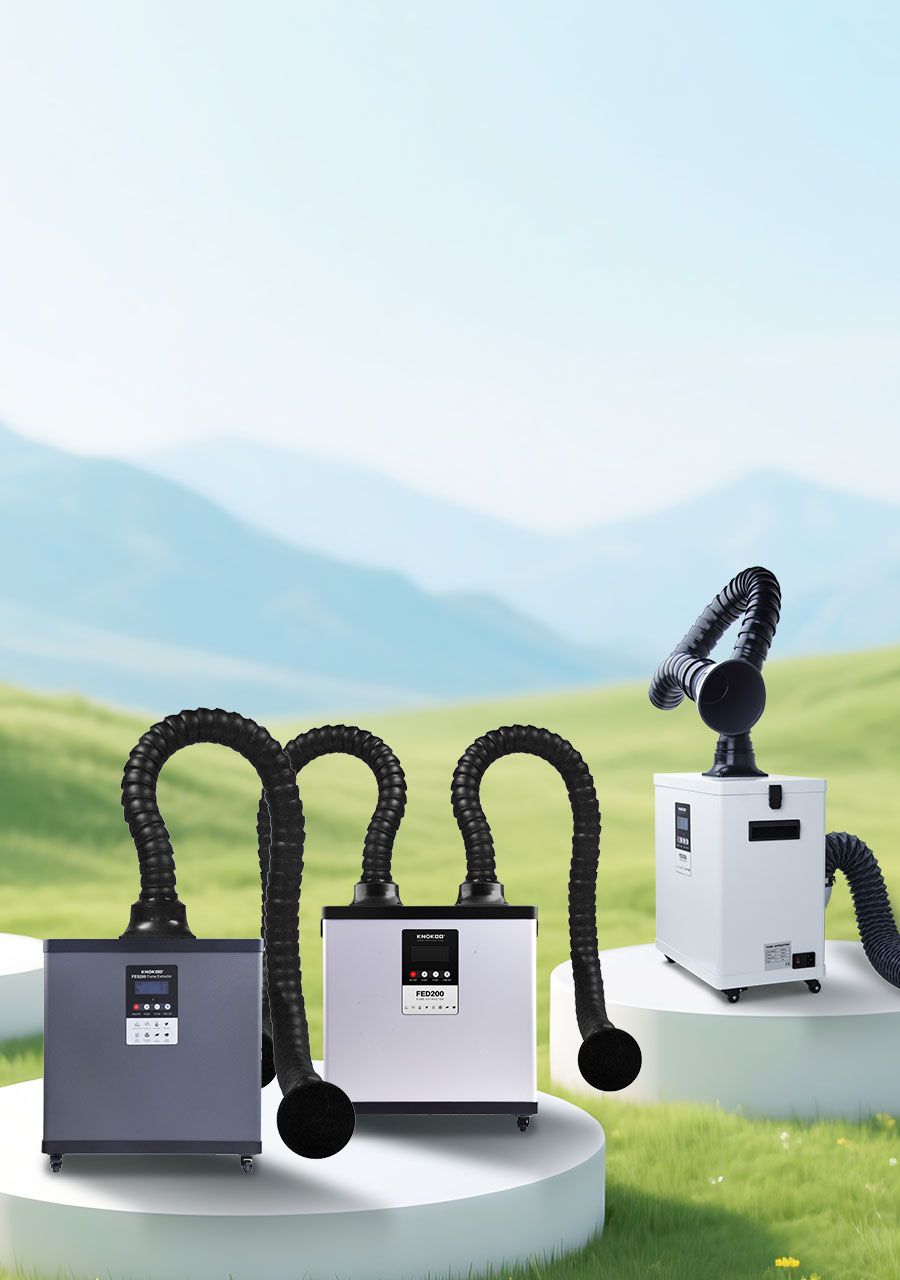

KNOKOO 210W DIY Welding Laser Soldering Fume Extractor FES200 for ESD Solder Station and Nail Salon, Moxibustion

FED 200

POWER:  210W

SUCTION:   155m3/h × 2

FES 200/200L

POWER:  210W

SUCTION :   310m3/h

KNOKOO 210W DIY Welding Laser Soldering Fume Extractor FES200 for ESD Solder Station and Nail Salon, Moxibustion

THREE LEVEL FILTERING

  • 1Primary Filtration

    Filter dust, debris and

    other large particles(PM60)

  • 2HEPA filter

    Filter dust, asbestos and other fine particles and

    Adsorption of tar and other substances(≥0.3um)

  • 3Advanced Filtering

    Filter flue gas and harmful gas

  • Primary Filtration
  • HEPA filter
  • Advanced Filtering

The sound of hard work is more like a soothing song

The sound of hard work is more like a soothing song
STANDARD ACCESSORIES

FED200

KNOKOO 210W DIY Welding Laser Soldering Fume Extractor FES200 for ESD Solder Station and Nail Salon, Moxibustion
Machine

Machine*1

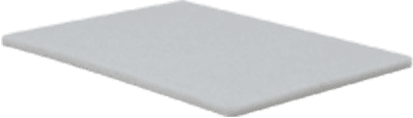

  • Primary Filter Cotton

    Primary Filter Cotton*4

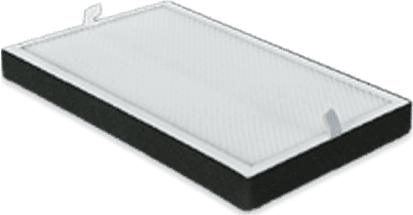

  • Medium-effect Filter Layer

    Medium-effect Filter Layer*1

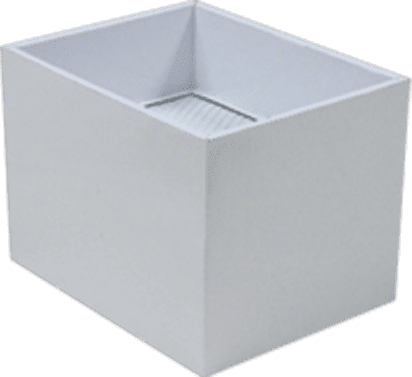

  • Main Filter Box

    Main Filter Box*1

  • 1.4m Universal Tube

    1.4m Universal Tube*2

  • Exhaust Vent

    Exhaust Vent*2

  • Power Line

    Power Line*1

FES200

KNOKOO 210W DIY Welding Laser Soldering Fume Extractor FES200 for ESD Solder Station and Nail Salon, Moxibustion
Machine

Machine*1

  • Primary Filter Cotton

    Primary Filter Cotton*4

  • Medium-effect Filter Layer

    Medium-effect Filter Layer*1

  • Main Filter Box

    Main Filter Box*1

  • 1.4m Universal Tube

    1.4m Universal Tube*1

  • Exhaust Vent

    Exhaust Vent*1

  • Power Line

    Power Line*1

FES200L

FES200L
Machine

Machine*1

Exhaust hose

Exhaust hose*1

Phillps Screwdriver

Phillps
Screwdriver*1

Flange adapter

Flange adapter*1

  • L-shaped exhaust pipe*1

    L-shaped
    exhaust pipe*1

  • Primary Filter Cotton

    Primary Filter Cotton*4

  • Medium-effect Filter Layer

    Medium-effect Filter Layer*1

  • Main Filter Box

    Main Filter Box*1

  • 1.4m Universal Tube

    1.4m Universal Tube*1

  • Exhaust Vent

    Exhaust Vent*1

  • Power Line

    Power Line*1

  • Metal locking valve

    Metal locking valve*1

APPLICATION SCENE
Dust is produced in polishing, cutting, grinding and other processes.

Dust is produced in polishing, cutting, grinding and other processes.

Smoke generated during welding, laser printing, etc.

Smoke generated during welding, laser printing, etc.

Smoke generated by the medical beauty industry

Smoke generated by the medical beauty industry

PRODUCT DETAILED PARAMETERS

  • Optional color

    OUTPUT VOLTAGE

    POWER

    AIR INLET INTERFACE

    SUCTION

    FILTER LAYERS

    NOISE

    SMOKE TUBE LENGTH

    FILTRATION EFFECT

    DISPLAY MODE

    SIZE

    NET WEIGHT

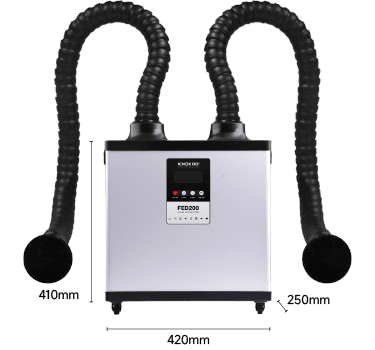

  • FED200FED200
    FED200
    BUY

    AC 110V/220V

    210W

    Φ75×2

    155m3/h × 2

    3Layer

    45-60dB

    1.4m

    >0.3μm 99.97%

    Led Screen

    420*250*410mm

    ≈14kg

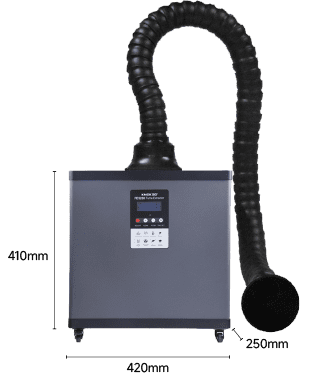

  • FES200FES200
    FES200
    BUY

    AC 110V/220V

    210W

    Φ75

    310m3/h

    3 Layer

    45-60dB

    1.4m

    >0.3μm 99.97%

    Led Screen

    420*250*410mm

    ≈14kg

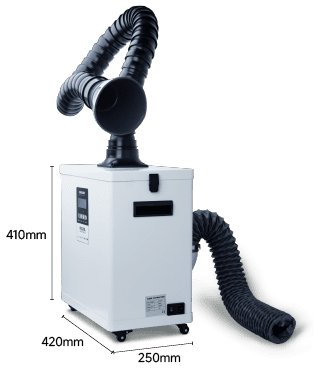

  • FES200L
    FES200L
    BUY

    AC 110V/220V

    210W

    Φ75

    310m3/h

    3 Layer

    45-60dB

    1.4m

    >0.3μm 99.97%

    Led Screen

    420*250*410mm

    ≈14kg

  • FED200
  • The appearance is simple and generous, stable and elegant. The fuselage integrated design, using metal frame structure, high quality cold rolled steel plate electrostatic spraying process, durable.
  • 1.Product advantages
  • Both sides are equipped with high-quality plastic handles, which are delicate, stable and reliable. The bottom of the machine is equipped with rollers for easy movement.
  • ◆ The product is equipped with a remote control, which can be far more than remote control.
  • The machine has a timing function, and the touch panel enters the timing mode.
  • The unique shape curve design of the air inlet flange is more in line with the principle of fluid dynamics.
  • ◆ Install humanized stepless speed governor, which can adjust the air volume and suction size at will.
  • ◆ The product is small in size and does not need to be installed, which is conducive to clean and beautiful working space and convenient movement.
  • 2.fan
  • ◆ Using brushless DC motor, built-in controller form, performance, quality is more guaranteed.
  • ◆ Stable operation, low noise, high efficiency, low energy consumption, long working time. No regular maintenance is required, and the cost is lower.
  • The wind wheel adopts the vortex backward design, and the special alloy material can effectively prevent the wind wheel from being corroded. The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably. High air volume, large suction, and higher filtration rate.
  • 3.Filter system
  • ◆ Multiple filtration system (3 layers). Filtering layer by layer to ensure that harmful soot is rapid discharges it into the Pre-filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.The purification rate can reach 99.99 %.
  • ◆ Modular design, layers of protection. The initial, medium and high efficiency can be replaced separately, the service life of the filter element is longer and the replacement cost is lower.
  • The unique internal sealing structure, coupled with special sealing materials, enables all harmful substances to pass through the filtration system, and the filtration efficiency is higher.
  • The built-in cycle active filtration method avoids the discharge of indoor cooling / heating air from the outdoor, and does not destroy the temperature and humidity environment of the operating range.
  • 4.Smoke collecting device
  • The machine is equipped with a universal smoking arm, which can be changed and positioned at will ( the length can be customized according to customer requirements ). The end is equipped with a new type of smoke collection hood, which has a unique shape and a higher efficiency of double-pipe smoking.
  • ◆ Simple installation, easy to use, without additional pipeline laying.
  • FES200
  • The appearance is simple and generous, stable and elegant. The fuselage integrated design, using metal frame structure, high quality cold rolled steel plate electrostatic spraying process, durable.
  • 1.Product advantages
  • Both sides are equipped with high-quality plastic handles, which are delicate, stable and reliable. The bottom of the machine is equipped with rollers for easy movement.
  • ◆ The product is equipped with a remote control, which can be far more than remote control.
  • The machine has a timing function, and the touch panel enters the timing mode.
  • The unique shape curve design of the air inlet flange is more in line with the principle of fluid dynamics.
  • ◆ Install humanized stepless speed governor, which can adjust the air volume and suction size at will.
  • ◆ The product is small in size and does not need to be installed, which is conducive to clean and beautiful working space and convenient movement.
  • 2.fan
  • ◆ Using brushless DC motor, built-in controller form, performance, quality is more guaranteed.
  • ◆ Stable operation, low noise, high efficiency, low energy consumption, long working time. No regular maintenance is required, and the cost is lower.
  • The wind wheel adopts the vortex backward design, and the special alloy material can effectively prevent the wind wheel from being corroded. The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably. High air volume, large suction, and higher filtration rate.
  • 3.Filter system
  • ◆ Multiple filtration system (3 layers). Filtering layer by layer to ensure that harmful soot is rapid discharges it into the Pre-filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.The purification rate can reach 99.99 %.
  • ◆ Modular design, layers of protection. The initial, medium and high efficiency can be replaced separately, the service life of the filter element is longer and the replacement cost is lower.
  • The unique internal sealing structure, coupled with special sealing materials, enables all harmful substances to pass through the filtration system, and the filtration efficiency is higher.
  • The built-in cycle active filtration method avoids the discharge of indoor cooling / heating air from the outdoor, and does not destroy the temperature and humidity environment of the operating range.
  • 4.Smoke collecting device
  • The machine is equipped with a universal smoking arm, which can be changed and positioned at will ( the length can be customized according to customer requirements ). The end is equipped with a new type of smoke collection hood, which has a unique shape and a higher efficiency of double-pipe smoking.
  • ◆ Simple installation, easy to use, without additional pipeline laying.
  • FES200L
  • Newly upgraded L-shaped smoke exhaust port to ensure that indoor air is not polluted
  • 1.Product advantages
  • The top of the machine is equipped with high-quality plastic handle, which is delicate, stable and reliable. The bottom of the machine is equipped with rollers, which is easy to move.
  • ◆ The product is equipped with a remote control, which can be far more than remote control.
  • The machine has an L-shaped exhaust port, which can be connected to the exhaust pipe to discharge the thick smoke or odor that cannot be filtered thoroughly to the outdoor, so as to ensure that the indoor air is not polluted. The L-shaped design is more in line with the actual use requirements, ensuring that the connection of the exhaust pipe is tighter and not easy to fall off.
  • The machine has a timing function, and the touch panel enters the timing mode.
  • The unique shape curve design of the air inlet flange is more in line with the principle of fluid dynamics.
  • ◆ Install humanized stepless speed governor, which can adjust the air volume and suction size at will.
  • ◆ The product is small in size and does not need to be installed, which is conducive to clean and beautiful working space and easy to move.
  • 2.fan
  • ◆ Using brushless DC motor, built-in controller form, performance, quality is more secure.
  • ◆ Stable operation, low noise, high efficiency, low energy consumption, long working time. No regular maintenance is required, and the cost is lower.
  • The wind wheel adopts the vortex backward design, and the special alloy material can effectively prevent the wind wheel from being corroded. The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably. High air volume, large suction, higher filtration rate.
  • 3.Filter system
  • ◆ Multiple filtration system (3 layers). Filtering layer by layer to ensure that harmful soot is rapid discharges it into the Pre-filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.The purification rate can reach 99.99 %.
  • ◆ Modular design, layer upon layer protection. The initial, medium and high efficiency can be replaced separately, the service life of the filter element is longer and the replacement cost is lower.
  • The unique internal sealing structure, coupled with special sealing materials, enables all harmful substances to pass through the filtration system, and the filtration efficiency is higher.
  • The built-in cycle active filtration method avoids the discharge of indoor cooling / heating air from the outdoor, and does not destroy the temperature and humidity environment of the operating range.
  • 4.Smoke collecting device
  • The machine is equipped with a high-temperature nylon hose with a length of 2M after stretching, which can meet most of the use scenarios.
  • The flexible hose end-to-end connection is adopted, that is, the suction port of the machine is seamlessly connected with the exhaust port of the customer 's laser machine, so as to improve the smoking efficiency and avoid running smoke.
  • ◆ Simple installation, easy to use, without additional pipeline laying.
  • 5.3D printing : Organic compounds VOCs and smoke emitted by ABS, nylon and similar materials during 3D printing can cause harm to human health.
  • 6.Other smoke / dust / odor places can be used.
