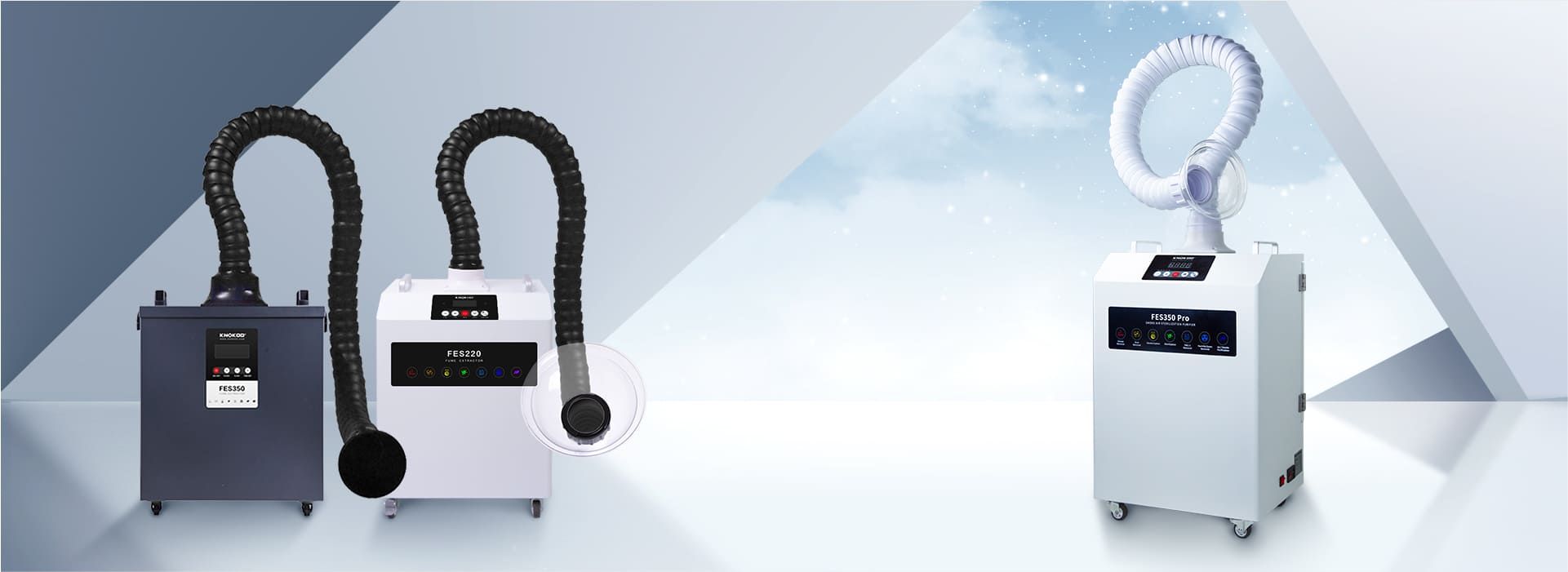

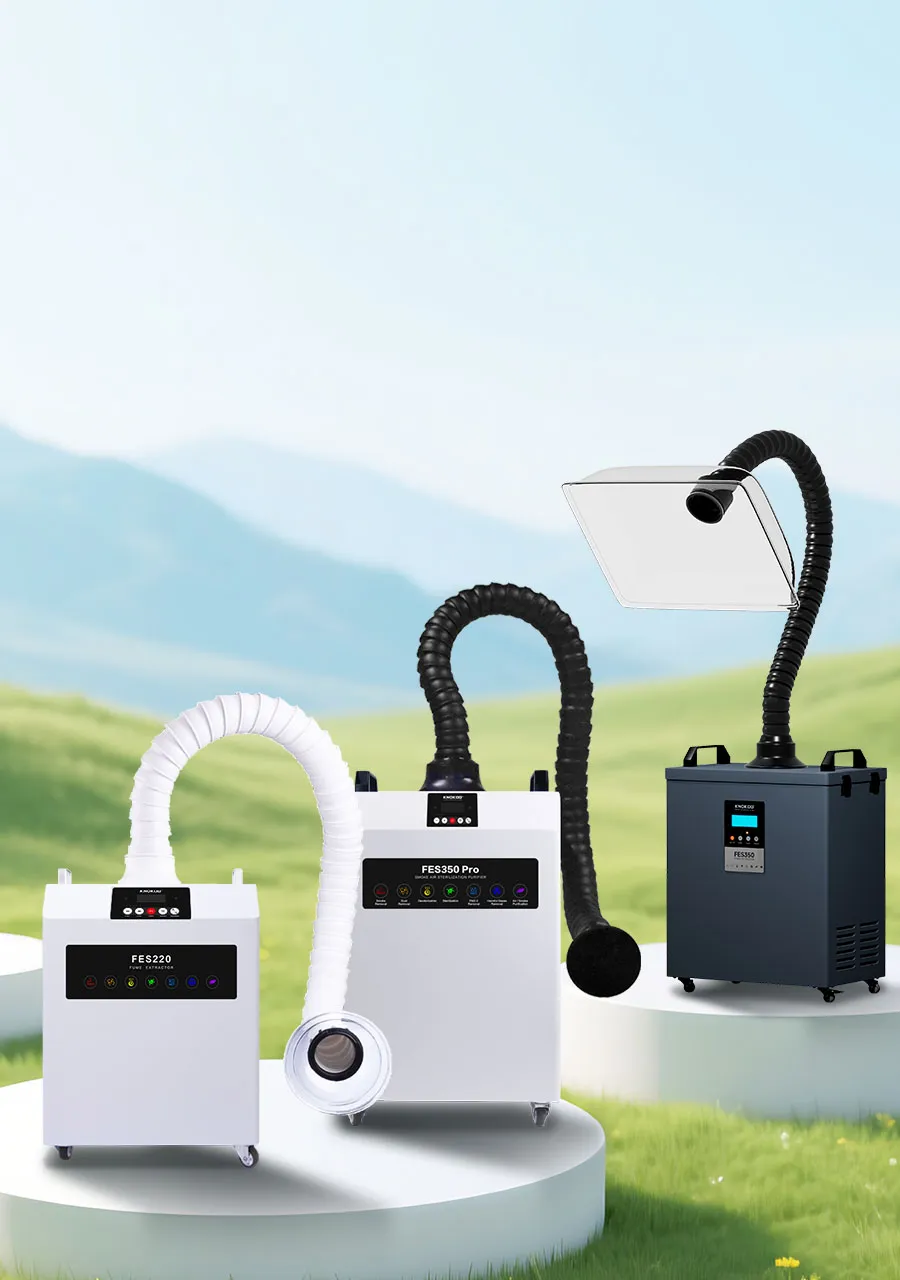

FES350 / FES220 / FES350pro
Powerful Fume Extractor
For Medical Or Laser
Beautiful strong multiple filtering

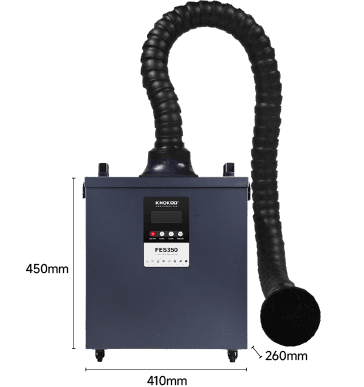

FES 350
POWER: 350W
Air Velovity : 430m3/h

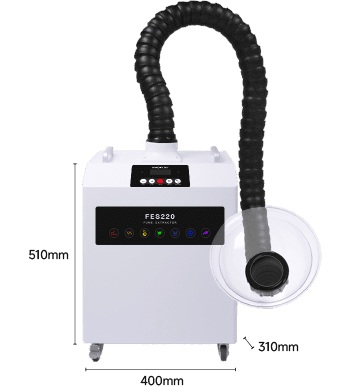

FES 220
POWER: 220W
Air Velovity: 400m3/h

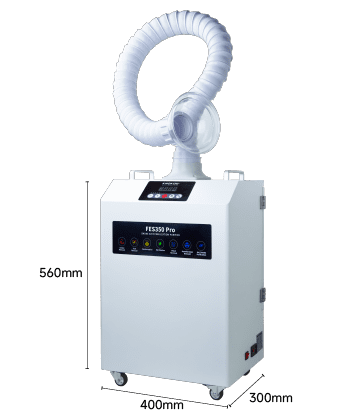

FES 350pro
POWER: 350W
Air Velovity: 460m3/h
FES 350
Four-layer Filtration System
1Pre-filter cotton
Filters large particles and reduces clogging.

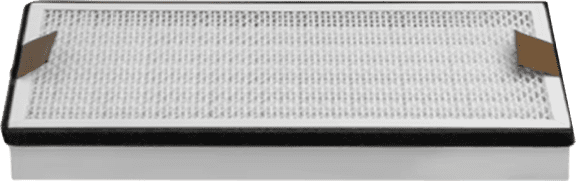

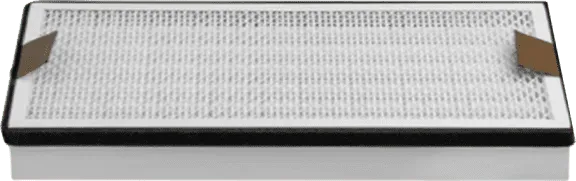

2Medium filter
Filter the vast majority of small particulate matter, to reduce the burden of highefficiency filter, prolong the service life.

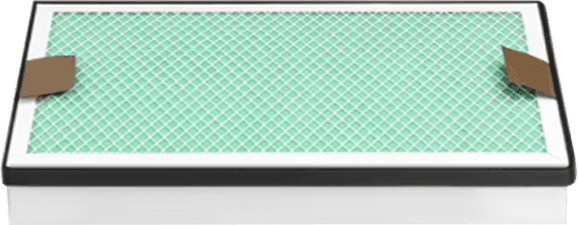

3Medium active carbon
Filter the small particles that can not beabsorbed by the upper level,and effectively absorb all kinds ofodors produced in the work.

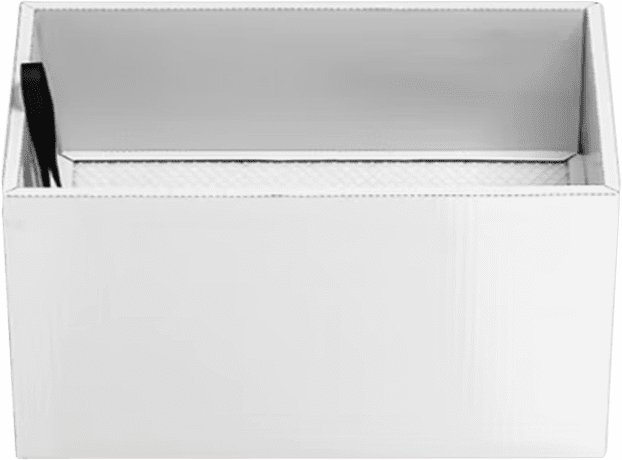

4High efficiency filter
High iodine value activated carbon,adsorption of various odors andtoxic and harmful gases andvolatile organic compoundsPrevent secondary pollution.
FES 200
Three-layer Filtration System
1Pre-filter cotton
Filters large particles and reduces clogging.
2Medium filter( H13 HEPA FILTER )
Filter the vast majority of small particulate matter, to reduce the burden of highefficiency filter, prolong the service life.
3High efficiency filter
High iodine value activated carbon,adsorption of various odors andtoxic and harmful gases andvolatile organic compoundsPrevent secondary pollution.
FES 350pro
Four-layer Filtration System
1Pre-filter cotton
Prevent large particles from enteringthe next level of filter,reduce the risk of clogging,easy replacement.
2Oil suction filter
Absorbs water, blood, aerosols and oil.

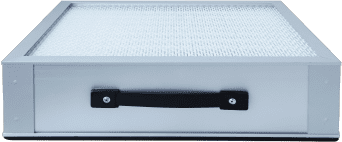

3Medium filter( H13 HEPA FILTER )
Filter the vast majority of small particulate matter, to reduce the burden of highefficiency filter, prolong the service life.

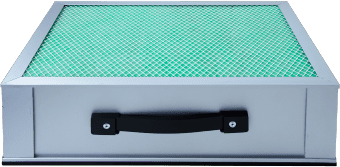

4High efficiency filter
High iodine value activated carbon,adsorption of various odors andtoxic and harmful gases andvolatile organic compoundsPrevent secondary pollution.
350 ' horsepower ' exhales the biggest roar like the small waves of the sea
STANDARD ACCESSORIES
FES350
Machine*1
Primary Filter Cotton*4
Medium-effect Filter Layer*1
Main Filter Box*4
1.4m Universal Tube*2
Exhaust Vent*2
Power Line*1
FES220
Machine*1
1.4m Universal Tube*2
Exhaust Vent*1
Primary Filter Cotton*1
Washing filter components*1
H13 filter component*1
Composite high efficiency carbon filter element*1
Power Line*1
FES350pro
Machine*1
1.4m Universal Tube*2
Exhaust Vent*1
Primary Filter Cotton*1
Washing filter components*1
H13 filter component*1
Composite high efficiency carbon filter element*1
Power Line*1
APPLICATION SCENE
Laser marking, engraving, cutting, welding
Dental aerosol
Chemical laboratory smoke dust treatment
Smoke and taste removal
3D printing
PRODUCT DETAILED PARAMETERS
Optional color
OUTPUT VOLTAGE
POWER
AIR INLET INTERFACE
SUCTION
FILTER LAYERS
NOISE
SMOKE TUBE LENGTH
FILTRATION EFFECT
DISPLAY MODE
SIZE
NET WEIGHT
FES350PRO
BUYAC 110V/220V
350W
Φ50 or Φ75
460m3
4Layer
≤60dB
1.4m
>0.3μm 99.97%
LED Screen

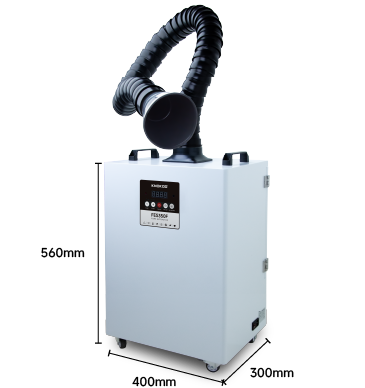

400*300*560mm
≈26.5kg
- FES350
- • KNOKOO Solder fume extractor have higher power, stronger suction and more efficient purification efficiency than ordinary soldering fans and other low power smoke absorber. HEPA filter and carbon filter can absorb smoke, harmful gases and unpleasant odors, smoke extractors can achieve 99.97% purification efficiency, so that you enjoy the pure air.
- • Multiple filtration system (4 layers) -The 4-layer filtration system can handle welding, soldering, laser printing, laser engraving, Nail salon,beauty work,3D printing, DTF printing smoke, harmful gases and unpleasant odors. Say goodbye to fume！each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.
- • Energy-saving and Environmental Protection KNOKOO fume extractor creates a powerful Systemic Flow 430m³/h to exhaust and purify air, high purification rate allow you to breathe fresh air again. Frequency converter DC motor, less power consumption, smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment, environmentally friendly.
- • 350W STRONG SUCTION POWER, LOW NOISE less than 60dB. Strong motivation and quietness are all for you. KNOKOO used DC motor, less power consumption, lowe noise, smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment.The power is 87.5% larger than the 80W machine on the market, the suction power is greater, the noise is not increased, and the smoke absorption and purification effect is more better.
- • 360-degree universal adjustable smoking duct - The suction pipe is composed of many shortened pipes and each interface can be bent freely, greatly improving the adjustment angle.Power Failure Protection: When the machine is working, turning off the three-in-one switch on the side will automatically cut off the power.
- FES220
- • Applicable fields: Soldering robot, tin furnace, Laser cutting, laser marking, laser engraving, DIY Solder Working and metal cutting. 99.97% FILTER PURIFICATION EFFECT, can bring you a fresh indoor air, do not be troubled by smoke and smell.
- • Laser marking fume extractor purification machine FES220 uses a microcomputer chip to control the digital display remote control. Multi-layer filtration, rapid purification. The use of multiple filtration design ensures more thorough purification of harmful smoke and dust. Carry out innovative noise reduction structure design to make the working environment more peaceful and pleasant.
- • The air inlet adopts a split-flow design so that harmful gas particles and harmful gases can be more fully filtered by HEPA filter and absorbed by activated carbon filter cotton, which greatly improves the filtration efficiency.
- • Multiple filtration system (3 layers) - KNOKOO fume absorber continuously exhaust the welding fume and lead mist, and rapid discharges it into the Pre-washale filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Four -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving
- • Laser Soldering Fume extractor FES220 has Wide range of applications: Smoke Removal, Dust Removal ,Laser smoke purifier, DTF Printer Harmful Gases Removal ,Beauty nail salon, Printing and Soldering.
- FES 350PRO
- The appearance is simple and generous, steady and elegant. The integrated design of the fuselage adopts a metal frame structure and a high-quality cold-rolled steel plate electrostatic spraying process, which is durable.
- 1. Product advantages
- • High-quality plastic handles are installed on both sides, which feel delicate, stable and reliable, and easy to carry.
- • The unique curve design of the air inlet flange is more in line with the principles of fluid dynamics.
- • Install a humanized stepless speed regulator to adjust the air volume and suction force at will.
- • The product is small in size and does not require installation, which is conducive to a neat and beautiful working space and easy to move.
- 2. Fan
- • Adopts a DC brushless motor with a built-in controller, and the performance and quality are more guaranteed.
- • Stable operation, low noise, high efficiency, low energy consumption, and long working time. No regular maintenance is required, and the cost is lower.
- • The wind wheel adopts a vortex backward design and a special alloy material to effectively prevent the wind wheel from being corroded. The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably. High air volume, large suction, and higher filtration rate.
- 3. Filter system
- • Adopts a quadruple filtration design.Filter layer by layer to ensure that harmful smoke and dust are filtered out more thoroughly. The purification rate can reach 99.99%.
- • Modular design, layer by layer protection. Primary, medium, activated carbon, and high efficiency can be replaced separately, the filter element has a longer service life and a lower replacement cost.
- • The unique internal sealing structure, coupled with special sealing materials, allows all harmful substances to pass through the filtration system, with higher filtration efficiency.
- • The built-in circulating active filtration method avoids discharging indoor cold air/heating air to the outside, and does not damage the temperature and humidity environment of the operating area.
- 4. Smoke collection device
- • The machine is equipped with a universal smoking arm, which can be changed and positioned at will (the length can be customized according to customer requirements). The end is equipped with a new type of smoke collection hood with a unique shape and higher smoking efficiency.
- • Simple installation and easy use, no need to lay additional pipes.
