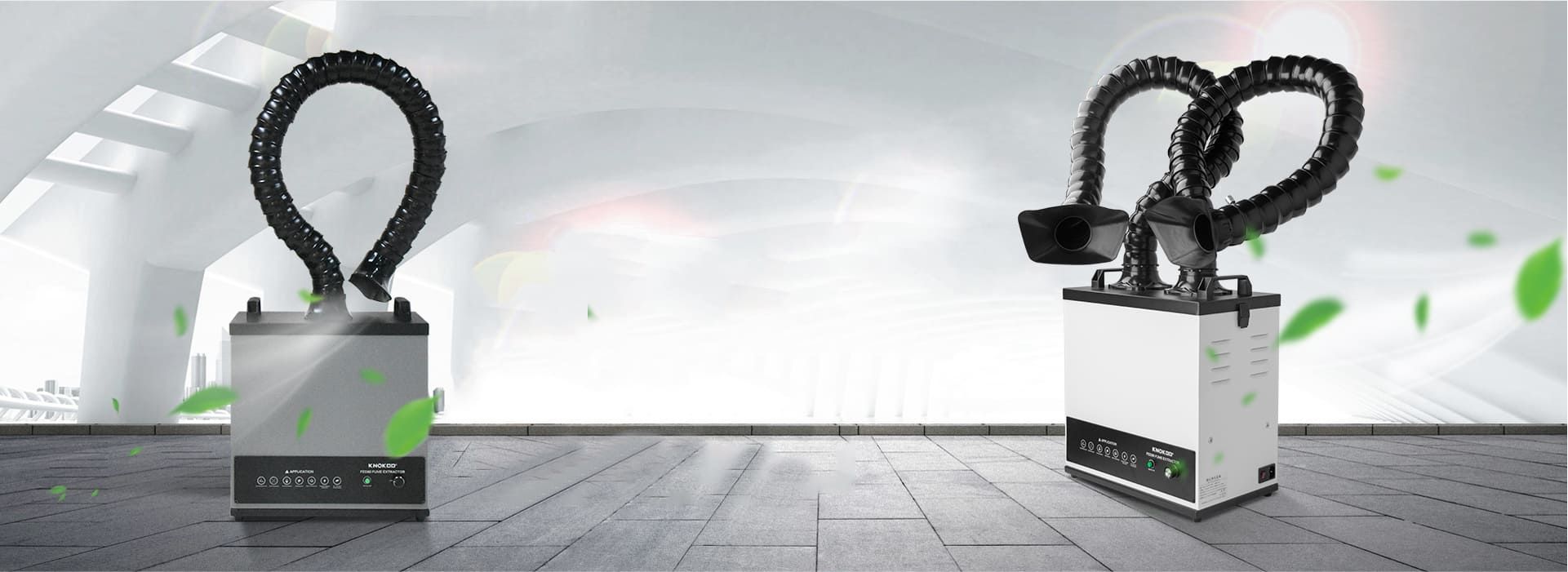

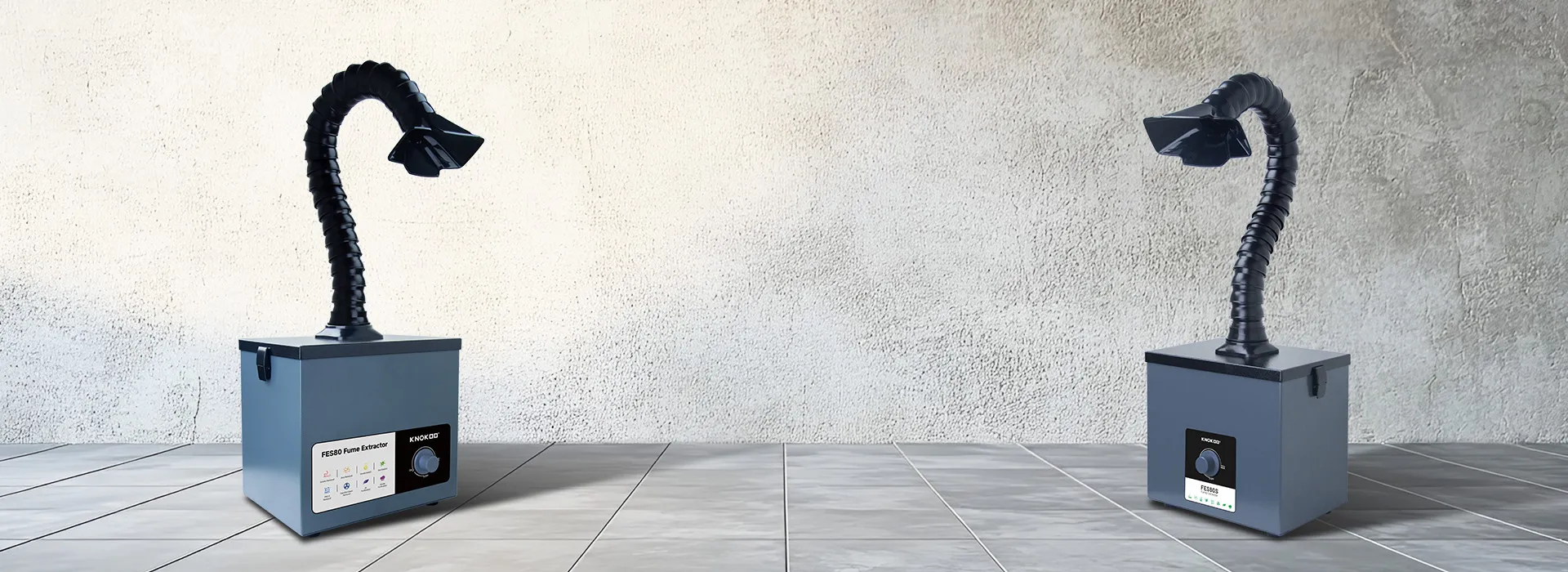

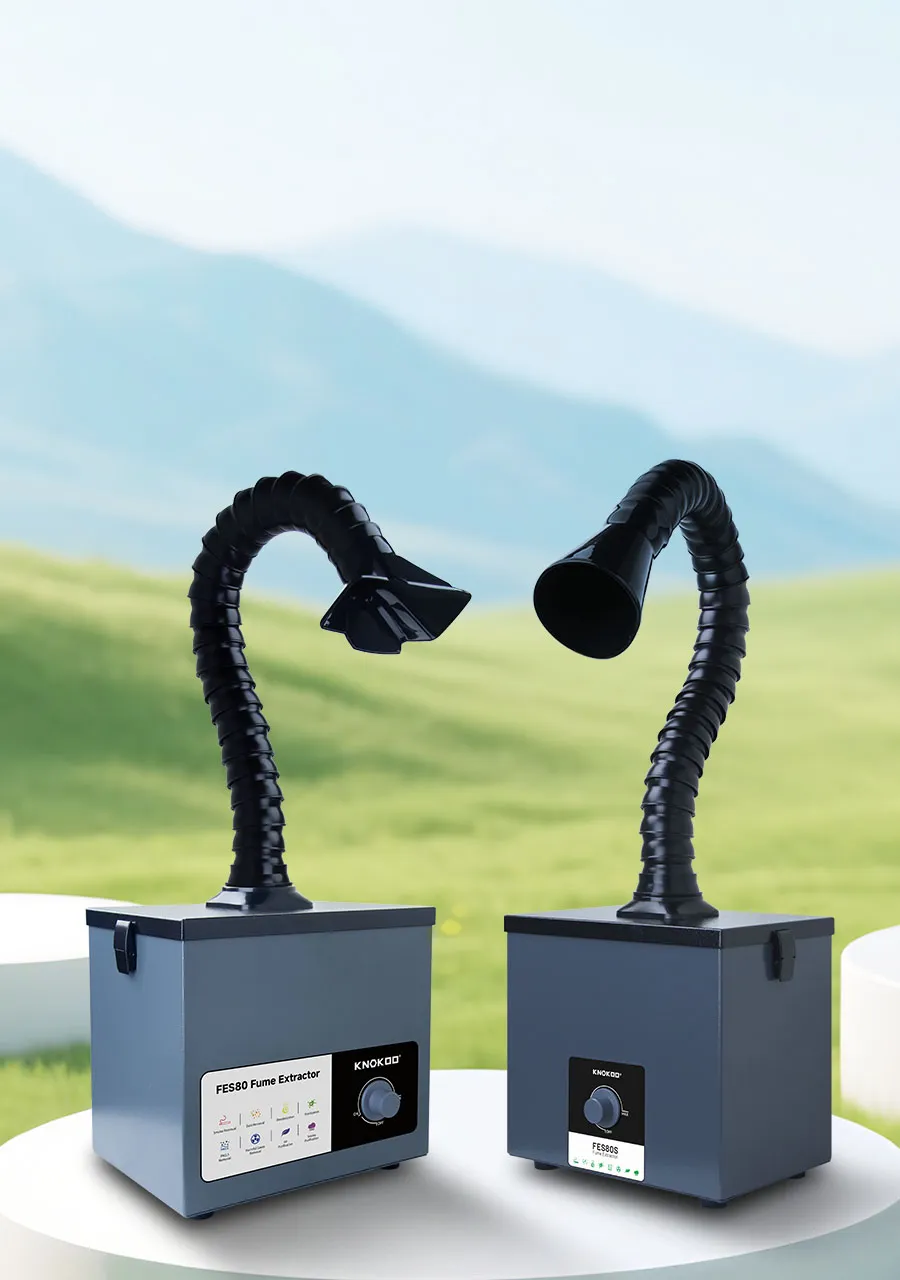

FES80 / FED80
Multiple Filtration Fume Extractor
Simple operation and wide range of applications

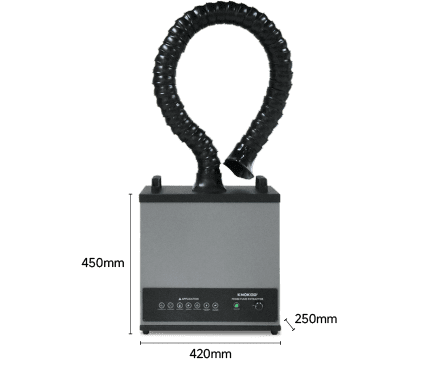

FES 80
POWER: 80W
SUCTION : 250m3/h

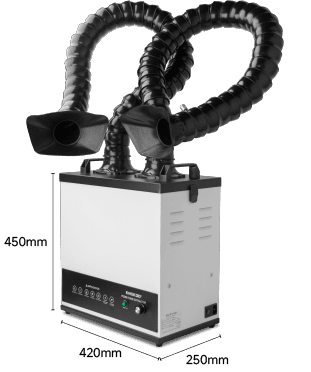

FED 80
POWER: 200W
SUCTION: 160m3/h × 2
THREE LEVEL FILTERING

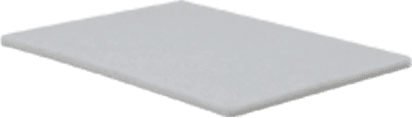

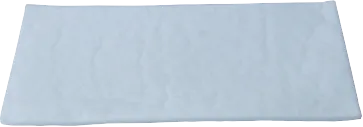

11st Layer Pre-Filter Cotton
Pre-Filter Cotton Filtration PM60 and Dust
Replacement period in 10-60 days

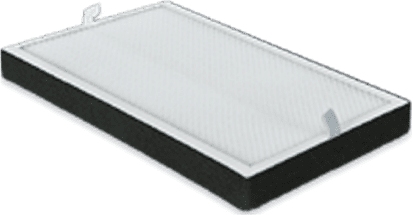

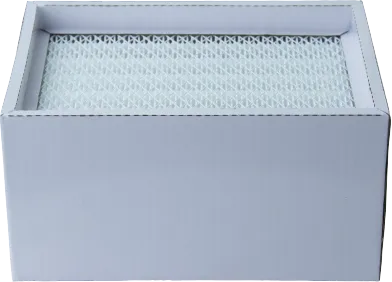

22nd Layer Middle HEPA Filter
Middle HEPA Filter Filtration PM0.3
Replacement period in 5-8 months

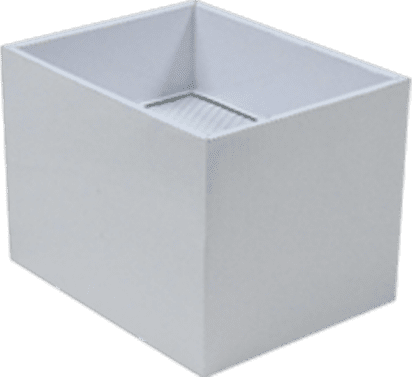

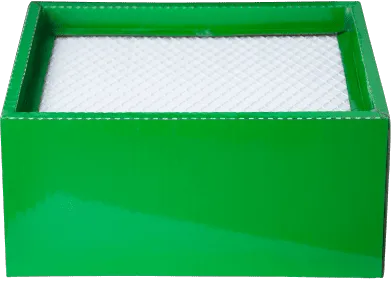

3 3rd Layer Main Filter with Activated Carbon
Main Filter with Activated Carbon Filtration Adsorption of Harmful Gases and Smoke, Replacement period in 6-12 months
Low running noise, approximately equal to the sound of conversation
STANDARD ACCESSORIES
FES80
Machine*1
Primary Filter Cotton*4
Medium-effect Filter Layer*1
Main Filter Box*1
1.3m Universal Tube*1
Silicone nozzle*1
Power Line*1
FED80
Machine*1
Primary Filter Cotton*4
Medium-effect Filter Layer*1
Main Filter Box*1
1.3m Universal Tube*2
Silicone nozzle*2
Power Line*1
APPLICATION SCENE
Soldering and Welding
Tin furnace
Laser Engraving
Mobile Phone Repair and DIY
PRODUCT DETAILED PARAMETERS
Optional color
INPUT VOLTAGE
POWER
AIR INLET INTERFACE
SUCTION
FILTER LAYERS
NOISE
SMOKE TUBE LENGTH
FILTRATION EFFECT
DISPLAY MODE
SIZE
NET WEIGHT
FED80
BUYAC 110V/220V
200W
Φ75×2
160m3/h × 2
3 Layers
55-65dB
1.3m
>0.3μm 99.97%
Knob Indication
420*240*450mm
18kg
- FES80 and FED80
- Appearance
- ◆ The fuselage integrated design, using metal frame structure, high quality cold rolled steel plate electrostatic spraying process, durable，simple, economical and practical.
- ◆ Both sides are equipped with high-quality plastic handles, which are delicate, stable and reliable, and easy to handle.
- ◆ The unique shape curve design of the air inlet flange is more suitable with the principle of fluid dynamics.
- ◆ Install humanized stepless speed governor, which can adjust the air volume and suction size.
- ◆ The product is small in size and does not need to be installed, which is conducive to clean and saving working space and easy to move.
- Fan
- ◆ Using brushless DC motor, built-in controller form, performance and quality is more guaranteed.
- ◆ Stable operation, low noise, high efficiency, low energy consumption, long working time,No regular maintenance is required, and the cost is lower.
- ◆ The wind wheel adopts the vortex backward design, and the special alloy material can effectively prevent the wind wheel from being corroded.
- ◆ The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably.
- ◆ High air volume, large suction, higher filtration efficiency.
- Filter system
- ◆Three-fold filtration design,Filtering layer by layer to ensure that harmful gas is filtered out more efficiently,The filtering efficiency can reach 99.97 %.
- ◆ Modular design, layers of protection, all three layers filters can be replaced separately, the service life of the filters is longer and the replacement cost is lower.
- ◆ The unique internal sealing structure, coupled with special sealing materials, enables all harmful substances to pass through the filtration system, and the filtration efficiency is higher.
- ◆ The built-in cycle active filtration method avoids the discharge of indoor cooling / heating air from the outdoor, and does not destroy the temperature and humidity environment of the operating range.
- Smoke collecting device
- ◆ The machine is equipped with a universal smoking arm, which can be changed and adjustable ( the length can be customized according to customer's requirements ).
- ◆ The end is equipped with a new type of smoke collection silicone nozzle, which has a unique shape and higher smoking efficiency.
- ◆ Simple installation, easy to use, without additional pipeline needed.
