FES220F

FES350U

Filter barrel + Tray

Smoke and dust purification, processing residue collection

2600cm² filtration area, reusable filter barrel

FES220F

Air inlet

Plastic hose

Material cutting

With a smaller air inlet and more powerful, concentrated suction, combined with a plastic hose and material cutters, it can adsorb, collect, and recycle powdery residues and waste materials such as metal and plastic, achieving pollution-free processing and waste-free recycling of residues.

FES350U

When used with a wide-mouth glass base, it can be used with bamboo-joint tubes.

When used with a wide-mouth glass base, it can be used with bamboo-joint tubes.

STANDARD ACCESSORIES

FES220F

Host*1

Filter barrel*1
Dust collection box*1
Manual*1

1.5m hose*1
Material cutting*2
Power line*1

FES350U

Host*1

Filter barrel*1
Dust collection box*1
Handset&manual*1

1.6m Bamboo*1
Range hood*1
Power line*1

APPLICATION SCENE

Enclosed Laser Processing Machine

Laser Marking Engraving Cutting & Welding

Laser Marking Engraving Cutting & Welding

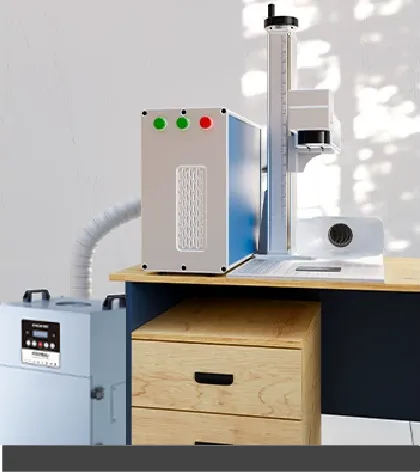

Desktop Laser Processing Machine Salt Spray Treatment

Desktop Laser Processing Machine Salt Spray Treatment

Trimming and recycling of residual materials

Trimming and recycling of residual materials

Chemistry laboratory smoke and dust treatment

Chemistry laboratory smoke and dust treatment

Dental aerosol treatment

Grinding dust treatment for large machines

Grinding dust treatment for large machines

PRODUCT DETAILED PARAMETERS

OUTPUT VOLTAGE
POWER
AIR INLET INTERFACE
SUCTION
FILTER LAYERS
NOISE
SMOKE TUBE LENGTH
FILTRATION EFFECT
DISPLAY MODE
SIZE
MAX VACUUM
NET WEIGHT
FES220F
Buy
AC 110V/220V
220W
Φ1*2
48m³/h
1-layer filter barrel
≤65dB
1.5-2m(Customizable)
>0.3μm 99.97%
Button Switch+Knob Control
270*270*530mm
9000Pa
≈16.1kg
FES350U
Buy
AC 110V/220V
350W
Φ75
580m³/h
1-layer filter barrel
≤58d
1.6/2m(Customizable)
>0.3μm 99.97%
LED Display
335*335*475mm
3000Pa
≈28kg

FES220F
It is suitable for purification and collection of various dust, particles and fine residues, especially for polishing and grinding dust scenarios of crafts, jewelry and other products;
It features ultra-high negative pressure of 9000Pa, which can suck processing residues and dust completely into the machine for filtration without residue;
It has a 2600cm² filter area and adopts PTFE membrane material, a new type of fume and dust capture filter. Compared with ordinary filter cartridges, it has good wear resistance and high filtration accuracy, supports high filtering wind speed, and achieves a 99.9% dust removal rate. The filter cartridge can be cleaned and reused (up to 6-8 months depending on usage scenarios);
Equipped with an integrated dust box, dust and large particles filtered by the filter cartridge directly fall into the dust box, and residual materials such as plastic and metal scraps can be recycled and reused;
Comes with a material cutter, which can be used with the machine hose to directly suck cut residues into the machine;
Button switch and stepless speed regulation knob for flexible airflow adjustment;
High-performance brushless motor with low noise, stable operation and longer service life;
Universal moving casters are installed at the bottom for easy movement and adjustment.

FES350U
It is used for various dust purification to improve product qualification rate and reduce damage caused by dust to operators and the environment;
It has a 2600cm² filter area and adopts PTFE membrane material, a new type of fume and dust capture filter. Compared with ordinary filter cartridges, it has good wear resistance and high filtration accuracy, supports high filtering wind speed, and achieves a 99.9% dust removal rate. The filter cartridge can be cleaned and reused (up to 6-8 months depending on usage scenarios);
Equipped with an integrated dust box, dust and large particles filtered by the filter cartridge directly fall into the dust box for easy cleaning;
LCD panel display for intuitive and simple operation, and it can be operated via remote control;
New-generation intelligent sensing system automatically detects pressure difference across the filter layer and sends alerts when the filter element reaches saturation;
High-performance motor with low noise and stable operation;
Universal moving casters are installed at the bottom for easy movement and adjustment.
