FES 60S

POWER:  48W

SUCTION:   180m3/h

FES 60S

FES 60S

ADVANCED DESKTOP
FUMEEXTRACTOR

The new style is more delicate and more portable

1600Pa suction power, plastic shell, net weight of about 2.35kg, elegant appearance, lightweight and compact, maximum noise level of 52dB, suitable for desktop use

fes60s_video_banner
APPLICATION SCENE
Desktop laser engraving machine smoke removal

Desktop laser engraver fume extractor

Eliminate odor from desktop 3D printer

Eliminate odor from desktop 3D printer

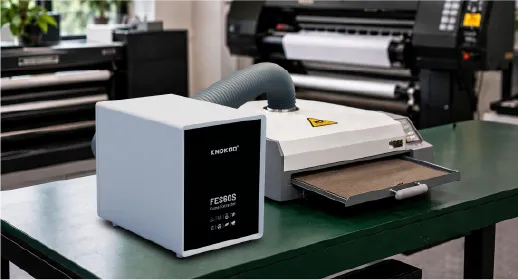

Smoke filtration for small DTF printers

Smoke filtration for small DTF printers

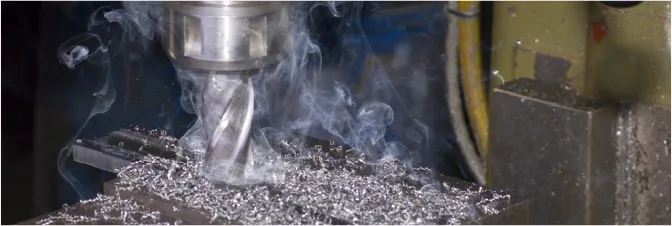

Smoke filtration for small industrial processing parts

Smoke filtration for small industrial processing parts

Laboratory fume treatment

Laboratory fume treatment

Handmade DIY smoke and odor treatment

Handmade DIY smoke and odor treatment

1Pre filter

Filter dust, debris and other large particles (PM60)

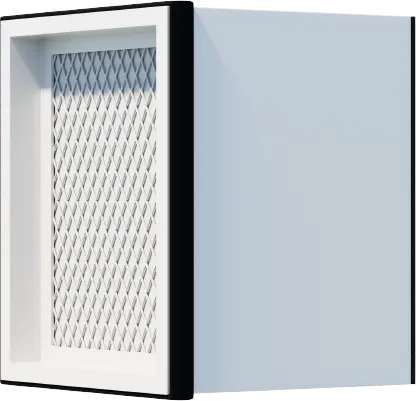

1Main filter

Filter dust, asbestos and other fine particles
and Adsorption of tar and other substances (≥0.3um)

STANDARD ACCESSORIES

Machine*1

  • Main filter box*1

  • Primary Filter Cotton*5

  • 1.4m Hose *1

  • Power Line*1

  • Manual*1

FES60S
BUY
  • Power Input
    Power Output
    Power
    Control Panel Display
    100-240V 50/60Hz
    24.0V 2A
    48W
    LED Indicator
  • Smoke Pipe Length
    Air Inlet Interface
    System Air Flow
    Noise
    140cm retractable hose (customizable), folded length ~19cm
    Φ50
    180m³/h
    ≤52dB
  • Outer Carton Dimensions
    Carton Net Weight

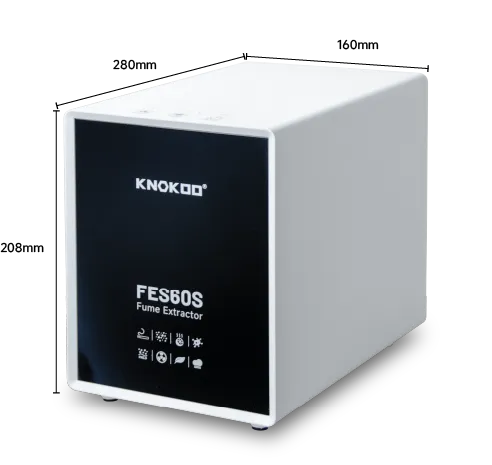

    Main Unit Dimensions
    Main Unit Net Weight
    340*210*320mm
    ≈3.45kg
    280*160*208mm
    ≈2.35kg
  • Filter Layers
    Main Filter Net Weight
    Filtration Efficiency
    2 Layers
    ≈1.2kg
    >0.3μm 99.97%
    • Product Overview
    • The smoke and dust purification system used in this product is a small smoke purifier specially designed by our company for workplaces such as small laser cutting processing, laser marking, laser engraving, FDM, light curing, and manual soldering. It has good comprehensive purification effect for harmful gases such as dust, smoke, and exhaust gas generated in the above-mentioned places. With multi-layer filtration devices, the purifi-cation efficiency is as high as 99.97%. The clean air after purification treatment can be directly discharged indoors.
    • Product Features
    • 1. High-quality fan operates with low noise
    • In terms of the power system, a high-quality motor is adopted, featuring high speed, strong negative pressure, and powerful suction. It can be directly connected to an AC100V-AC240V power supply and offers three-speed adjustment, allowing for the selection of air volume according to working conditions.
    • 2. The control circuit is safe and reliable
    • The electrical system utilizes a specially designed advanced modular circuit board from our company, enabling speed regulation functionality. Key components are sourced from reputable brands and are of high-quality materials, fully ensuring operational safety and reliability.
    • 3. Combined filtration: The filtration system adopts multi-stage purification for thorough purification. With modular design, it provides layer upon layer of protection. Each layer can be replaced individually, extending the lifespan of the filter element and reducing the cost of use. The filtration is carried out layer by layer, ensuring that harmful smoke and dust are purified more thoroughly.
    • 4. Injection molding and mold opening, featuring an aesthetically pleasing and elegant integrated mold opening frame structure design.
    • 5. Anti-slip floor mats
    • Industrial anti-slip mats, with strong stability, shock absorption and anti-slip performance.
